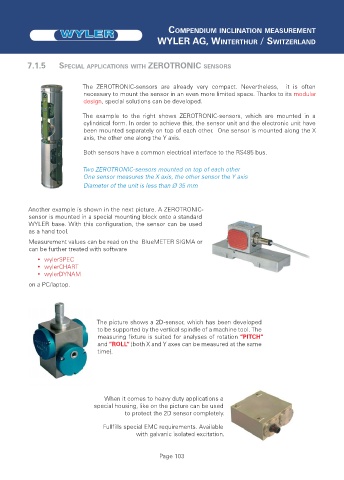

COMPENDIUM INCLINATION MEASUREMENT
WYLER AG, WINTERTHUR / SWITZERLAND

7.1.5 SPECIAL APPLICATIONS WITH ZEROTRONIC SENSORS

The ZEROTRONIC-sensors are already very compact. Nevertheless, it is often
necessary to mount the sensor in an even more limited space. Thanks to its modular
design, special solutions can be developed.
The example to the right shows ZEROTRONIC-sensors, which are mounted in a
cylindrical form. In order to achieve this, the sensor unit and the electronic unit have
been mounted separately on top of each other. One sensor is mounted along the X
axis, the other one along the Y axis.

Both sensors have a common electrical interface to the RS485 bus.
Two ZEROTRONIC-sensors mounted on top of each other
One sensor measures the X axis, the other sensor the Y axis
Diameter of the unit is less than Ø 35 mm

Another example is shown in the next picture. A ZEROTRONIC-
sensor is mounted in a special mounting block onto a standard
WYLER base. With this configuration, the sensor can be used
as a hand tool.
Measurement values can be read on the BlueMETER SIGMA or
can be further treated with software
• wylerSPEC
• wylerCHART
• wylerDYNAM
on a PC/laptop.

The picture shows a 2D-sensor, which has been developed
to be supported by the vertical spindle of a machine tool. The
measuring fixture is suited for analyses of rotation “PITCH“
and “ROLL“ (both X and Y axes can be measured at the same
time).

When it comes to heavy duty applications a
special housing, like on the picture can be used
to protect the 2D sensor completely.
Fullfills special EMC requirements. Available
with galvanic isolated excitation.
