COMPENDIUM INCLINATION MEASUREMENT
WYLER AG, WINTERTHUR / SWITZERLAND

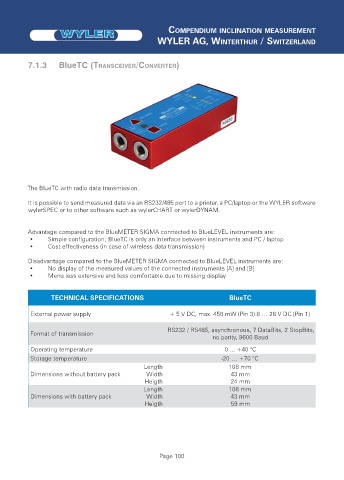

7.1.3 BlueTC (TRANSCEIVER/CONVERTER)

The BlueTC with radio data transmission.
It is possible to send measured data via an RS232/485 port to a printer, a PC/laptop or the WYLER software
wylerSPEC or to other software such as wylerCHART or wylerDYNAM.

Advantage compared to the BlueMETER SIGMA connected to BlueLEVEL instruments are:
• Simple configuration; BlueTC is only an interface between instruments and PC / laptop
• Cost effectiveness (in case of wireless data transmission)
Disadvantage compared to the BlueMETER SIGMA connected to BlueLEVEL instruments are:
• No display of the measured values of the connected instruments [A] and [B]
• Menu less extensive and less comfortable due to missing display

TECHNICAL SPECIFICATIONS BlueTC
External power supply + 5 V DC, max. 450 mW (Pin 3) 8 … 28 V DC (Pin 1)

RS232 / RS485, asynchronous, 7 DataBits, 2 StopBits,
Format of transmission
no parity, 9600 Baud
Operating temperature 0 ... +40 °C
Storage temperature -20 … +70 °C
Length 108 mm
Dimensions without battery pack Width 43 mm
Heigth 24 mm
Length 108 mm
Dimensions with battery pack Width 43 mm
Heigth 59 mm

Page 100
