COMPENDIUM INCLINATION MEASUREMENT
WYLER AG, WINTERTHUR / SWITZERLAND

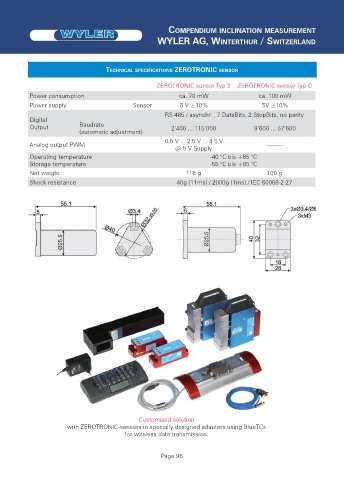

TECHNICAL SPECIFICATIONS ZEROTRONIC SENSOR
ZEROTRONIC sensor Typ 3 ZEROTRONIC sensor Typ C
Power consumption ca. 70 mW ca. 100 mW
Power supply Sensor 5 V ±10% 5V ±10%
RS 485 / asynchr. , 7 DataBits, 2 StopBits, no parity
Digital
Output Baudrate 2‘400 ... 115‘000 9‘600 ... 57‘600
(automatic adjustment)
0.5 V ... 2.5 V ... 4.5 V
Analog output PWM ----------
@ 5 V Supply
Operating temperature -40 °C bis +85 °C
Storage temperature -55 °C bis +95 °C
Net weight 118 g 100 g
Shock resistance 40g (11ms) / 2000g (1ms) / IEC 60068-2-27
Customized solution
with ZEROTRONIC-sensors in specially designed adapters using BlueTCs
for wireless data transmission.
