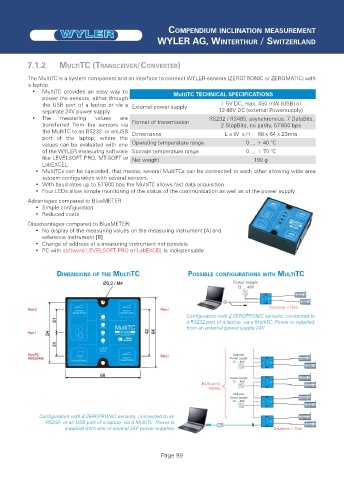

COMPENDIUM INCLINATION MEASUREMENT
WYLER AG, WINTERTHUR / SWITZERLAND

7.1.2 MULTITC (TRANSCEIVER/CONVERTER)

The MultiTC is a system component and an interface to connect WYLER-sensors (ZEROTRONIC or ZEROMATIC) with
a laptop.
• MultiTC provides an easy way to MultiTC TECHNICAL SPECIFICATIONS
power the sensors, either through
the USB port of a laptop or via a External power supply + 5V DC, max. 450 mW (USB) or
separate 24V power supply. 12-48V DC (external Powersupply)
• The measuring values are RS232 / RS485, asynchronous, 7 DataBits,
transferred from the sensors via Format of transmission 2 StopBits, no parity, 57‘600 bps
the MultiTC to an RS232- or anUSB Dimensions L x W x H 68 x 64 x 23mm
port of the laptop, where the
values can be evaluated with one Operating temperature range 0 ... + 40 °C
of the WYLER measuring software Storage temperature range 0 ... + 70 °C
like LEVELSOFT PRO, MT-SOFT or Net weight 190 g
LabEXCEL.
• MultiTCs can be cascaded, that means, several MultiTCs can be connected to each other allowing wide area
system configuration with several sensors.
• With baud rates up to 57’600 bps the MultiTC allows fast data acquisition
• Four LEDs allow simple monitoring of the status of the communication as well as of the power supply
Advantages compared to BlueMETER:
• Simple configuration
• Reduced costs
Disadvantages compared to BlueMETER:
• No display of the measuring values on the measuring instrument [A] and
reference instrument [B]
• Change of address of a measuring instrument not possible
• PC with software LEVELSOFT PRO or LabEXCEL is indispensable

DIMENSIONS OF THE MULTITC POSSIBLE CONFIGURATIONS WITH MULTITC
Power supply
12 ... 48V

Distance <15m
Configuration with 2 ZEROTRONIC sensors, connected to
a RS232-port of a laptop, via a MultiTC. Power is supplied
from an external power supply 24V.

Optional:
Power supply
12 ... 48V
Power Supply
12 ... 48V
BUS up to
1000m
Optional:
Power Supply
12 ... 48V
Configuration with 8 ZEROTRONIC sensors, connected to an
RS232- or an USB port of a laptop, via 4 MultiTC. Power is
supplied from one or several 24V power supplies. Distance <15m
