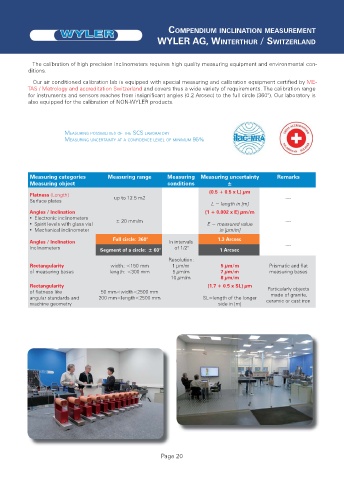

COMPENDIUM INCLINATION MEASUREMENT
WYLER AG, WINTERTHUR / SWITZERLAND

The calibration of high precision inclinometers requires high quality measuring equipment and environmental con-
ditions.
Our air conditioned calibration lab is equipped with special measuring and calibration equipment certified by ME-
TAS / Metrology and accreditation Switzerland and covers thus a wide variety of requirements. The calibration range
for instruments and sensors reaches from insignificant angles (0.2 Arcsec) to the full circle (360°). Our laboratory is
also equipped for the calibration of NON-WYLER products.

MEASURING POSSIBILITIES OF THE SCS LABORATORY
MEASURING UNCERTAINTY AT A CONFIDENCE LEVEL OF MINIMUM 95%

Measuring categories Measuring range Measuring Measuring uncertainty Remarks
Measuring object conditions ±
Flatness (Length) (0.5 + 0.5 x L) μm
Surface plates up to 12.5 m2 ----
L = length in [m]
Angles / Inclination (1 + 0.002 x E) μm/m
• Electronic inclinometers ± 20 mm/m ----
• Spirit levels with glass vial E = measured value
• Mechanical inclinometer in [μm/m]
Angles / Inclination Full circle: 360° In intervals 1.3 Arcsec ----
Inclinometers Segment of a circle: ± 60° of 1/2° 1 Arcsec
Resolution:
Rectangularity width: <150 mm 1 μm/m 5 μm/m Prismatic and flat
of measuring bases length: <300 mm 5 μm/m 7 μm/m measuring bases
10 μm/m 8 μm/m
Rectangularity (1.7 + 0.5 x SL) μm Particularly objects
of flatness like 50 mm<width<2500 mm
made of granite,
angular standards and 200 mm<length<2500 mm SL=length of the longer ceramic or cast iron
machine geometry side in [m]
