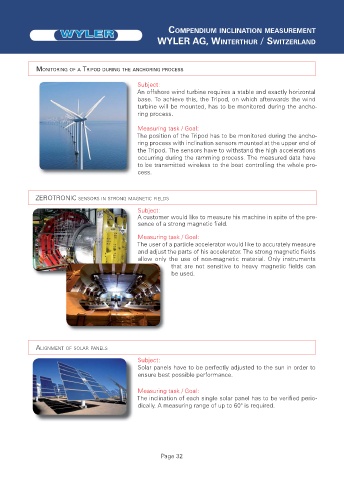

COMPENDIUM INCLINATION MEASUREMENT
WYLER AG, WINTERTHUR / SWITZERLAND

MONITORING OF A TRIPOD DURING THE ANCHORING PROCESS
Subject:
An offshore wind turbine requires a stable and exactly horizontal
base. To achieve this, the Tripod, on which afterwards the wind
turbine will be mounted, has to be monitored during the ancho-
ring process.
Measuring task / Goal:
The position of the Tripod has to be monitored during the ancho-
ring process with inclination sensors mounted at the upper end of
the Tripod. The sensors have to withstand the high accelerations
occurring during the ramming process. The measured data have
to be transmitted wireless to the boat controlling the whole pro-
cess.

ZEROTRONIC SENSORS IN STRONG MAGNETIC FIELDS
Subject:
A customer would like to measure his machine in spite of the pre-
sence of a strong magnetic field.
Measuring task / Goal:
The user of a particle accelerator would like to accurately measure
and adjust the parts of his accelerator. The strong magnetic fields
allow only the use of non-magnetic material. Only instruments
that are not sensitive to heavy magnetic fields can
be used.

ALIGNMENT OF SOLAR PANELS
Subject:
Solar panels have to be perfectly adjusted to the sun in order to
ensure best possible performance.

Measuring task / Goal:
The inclination of each single solar panel has to be verified perio-
dically. A measuring range of up to 60° is required.
