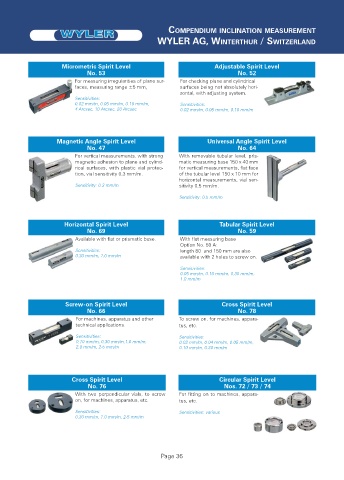

COMPENDIUM INCLINATION MEASUREMENT
WYLER AG, WINTERTHUR / SWITZERLAND

Micrometric Spirit Level Adjustable Spirit Level
No. 53 No. 52
For measuring irregularities of plane sur- For checking plane and cylindrical
faces, measuring range ±5 mm, surfaces being not absolutely hori-
zontal, with adjusting system.
Sensitivities:
0.02 mm/m, 0.05 mm/m, 0.10 mm/m, Sensitivities:
4 Arcsec, 10 Arcsec, 20 Arcsec 0.02 mm/m, 0.05 mm/m, 0.10 mm/m

Magnetic Angle Spirit Level Universal Angle Spirit Level
No. 47 No. 64
For vertical measurements, with strong With removable tubular level, pris-
magnetic adhesion to plane and cylind- matic measuring base 150 x 40 mm
rical surfaces, with plastic vial protec- for vertical measurements, flat face
tion, vial sensitivity 0.3 mm/m. of the tubular level 150 x 10 mm for
horizontal measurements, vial sen-
Sensitivity: 0.3 mm/m sitivity 0.5 mm/m.
Sensitivity: 0.5 mm/m

Horizontal Spirit Level Tabular Spirit Level
No. 69 No. 59
Available with flat or prismatic base. With flat measuring base
Option No. 59 A:
Sensitivities: length 80 and 150 mm are also
0.30 mm/m, 1.0 mm/m available with 2 holes to screw on.
Sensitivities:
0.05 mm/m, 0.10 mm/m, 0.30 mm/m,
1.0 mm/m

Screw-on Spirit Level Cross Spirit Level
No. 66 No. 78
For machines, apparatus and other To screw on, for machines, appara-
technical applications. tus, etc.
Sensitivities: Sensitivities:
0.10 mm/m, 0.30 mm/m,1.0 mm/m, 0.02 mm/m, 0.04 mm/m, 0.05 mm/m,
2.0 mm/m, 2-5 mm/m 0.10 mm/m, 0.30 mm/m

Cross Spirit Level Circular Spirit Level
No. 76 Nos. 72 / 73 / 74
With two perpendicular vials, to screw For fitting on to machines, appara-
on, for machines, apparatus, etc. tus, etc.
Sensitivities: Sensitivities: various
0.30 mm/m, 1.0 mm/m, 2-5 mm/m

Page 36
