COMPENDIUM INCLINATION MEASUREMENT
WYLER AG, WINTERTHUR / SWITZERLAND

Battery powered electronic inclinometer with analog display on a built-in galvanometer. The remarkable
stability of the zero-point makes this instrument particularly suitable for long-term measuring tasks and for
adjustment or alignment works on large guideways.
The nivelSWISS is mounted in a rugged body of carefully treated cast iron.
It is available in two versions:
nivelSWISS 50-H HORIZONTAL VERSION
with a horizontal flat measuring base, equipped with slots for screwing onto
special measuring bases (i.e. granite measuring bases) or on customer‘s own special
measuring equipment. Mainly used for the adjustment or alignment of horizontal
machines and for checking the flatness of machine tables and guideways.
nivelSWISS 50-W ANGULAR VERSION
equipped with two prismatic measuring bases in rectangular position to each other
for measuring flat surfaces and shafts (diameters Ø 20 ... 120 mm) horizontally or
vertically.
The measuring faces are carefully hand scraped to obtain an extraordinary precision.
This makes the instrument extremely suitable for adjustments or checks on
rectangular geometrical components of machine tools and structures.

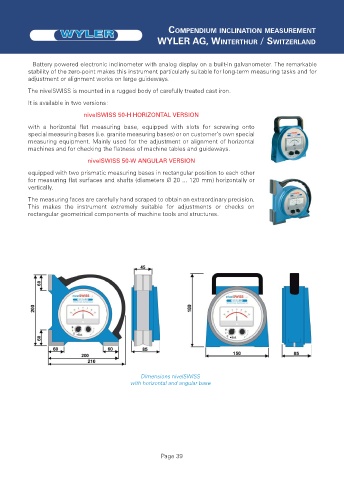

Dimensions nivelSWISS
with horizontal and angular base
