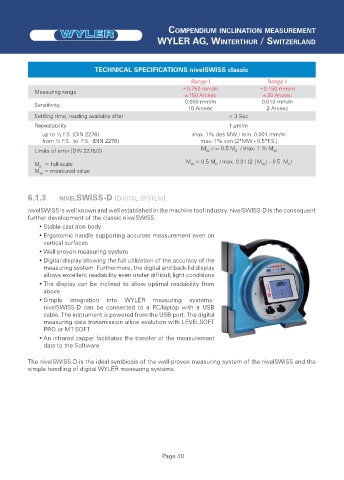

COMPENDIUM INCLINATION MEASUREMENT
WYLER AG, WINTERTHUR / SWITZERLAND

TECHNICAL SPECIFICATIONS nivelSWISS classic
Range I Range II
±0.750 mm/m ±0.150 mm/m
Measuring range
±150 Arcsec ±30 Arcsec
0.050 mm/m 0.010 mm/m
Sensitivity
10 Arcsec 2 Arcsec
Settling time, reading available after < 3 Sec
Repeatability 1 μm/m
up to ½ F.S. (DIN 2276) max. 1% des MW / min. 0.001 mm/m
from ½ F.S. to F.S. (DIN 2276) max. 1% von (2*MW - 0.5*F.S.)
Limits of error (DIN 2276/2) M <= 0.5 M / max. 1 % M W
E
W
M > 0.5 M / max. 0.01 (2 |M | - 0.5 M )
M = full-scale W E W E
E
M = measured value
W
6.1.3 NIVELSWISS-D (DIGITAL SYSTEM)
nivelSWISS is well known and well established in the machine tool industry. nivelSWISS-D is the consequent
further development of the classic nivelSWISS:
• Stable cast iron body
• Ergonomic handle supporting accurate measurement even on
vertical surfaces
• Well-proven measuring system
• Digital display allowing the full utilization of the accuracy of the
measuring system. Furthermore, the digital and back-lid display
allows excellent readability even under difficult light conditions
• The display can be inclined to allow optimal readability from
above
• Simple integration into WYLER measuring systems:
nivelSWISS-D can be connected to a PC/laptop with a USB
cable. The instrument is powered from the USB port. The digital
measuring data transmission allow evalution with LEVELSOFT
PRO or MT-SOFT
• An infrared zapper facilitates the transfer of the measurement
data to the Software
The nivelSWISS-D is the ideal symbiosis of the well-proven measuring system of the nivelSWISS and the
simple handling of digital WYLER measuring systems.
