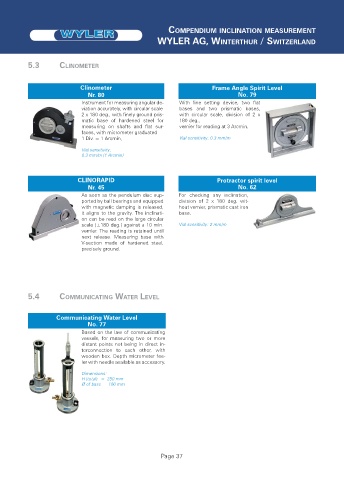

Page 37 - Lehrbuch Neigungsmessung deutsch 2018.indd

COMPENDIUM INCLINATION MEASUREMENT
WYLER AG, WINTERTHUR / SWITZERLAND

5.3 CLINOMETER

Clinometer Frame Angle Spirit Level
Nr. 80 No. 79
Instrument for measuring angular de- With fine setting device, two flat
viation accurately, with circular scale bases and two prismatic bases,
2 x 180 deg., with finely ground pris- with circular scale, division of 2 x
matic base of hardened steel for 180 deg.,
measuring on shafts and flat sur- vernier for reading at 3 Arcmin.
faces, with micrometer graduated
1 Div. = 1 Arcmin, Vial sensitivity: 0.3 mm/m
Vial sensitivity:
0.3 mm/m (1 Arcmin)

CLINORAPID Protractor spirit level
Nr. 45 No. 62
As soon as the pendulum disc sup- For checking any inclination,
ported by ball bearings and equipped division of 2 x 180 deg. wit-
with magnetic damping is released, hout vernier, prismatic cast iron
it aligns to the gravity. The inclinati- base.
on can be read on the large circular
scale (±180 deg.) against a 10 min. Vial sensitivity: 2 mm/m
vernier. The reading is retained until
next release. Measuring base with
V-section made of hardened steel,
precisely ground.

5.4 COMMUNICATING WATER LEVEL 77

Communicating Water Level
No. 77
Based on the law of communicating
vessels, for measuring two or more
distant points not being in direct in-
terconnection to each other, with
wooden box. Depth micrometer fee-
ler with needle available as accessory.
Dimensions:
H (total) = 250 mm
Ø of base = 100 mm
