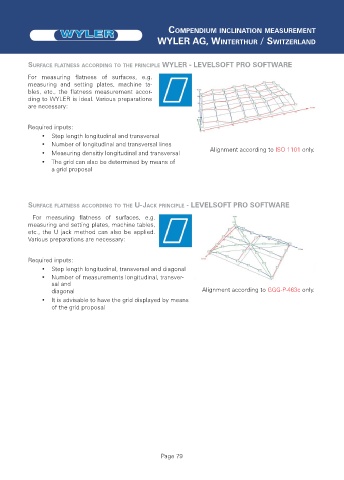

Page 79 - Lehrbuch Neigungsmessung deutsch 2018.indd

COMPENDIUM INCLINATION MEASUREMENT
WYLER AG, WINTERTHUR / SWITZERLAND

SURFACE FLATNESS ACCORDING TO THE PRINCIPLE WYLER - LEVELSOFT PRO SOFTWARE
For measuring flatness of surfaces, e.g.
measuring and setting plates, machine ta-
bles, etc., the flatness measurement accor-
ding to WYLER is ideal. Various preparations
are necessary:

Required inputs:
• Step length longitudinal and transversal
• Number of longitudinal and transversal lines
• Measuring densitiy longitudinal and transversal Alignment according to ISO 1101 only.
• The grid can also be determined by means of
a grid proposal

SURFACE FLATNESS ACCORDING TO THE U-JACK PRINCIPLE - LEVELSOFT PRO SOFTWARE
For measuring flatness of surfaces, e.g.
measuring and setting plates, machine tables,
etc., the U jack method can also be applied.
Various preparations are necessary:

Required inputs:
• Step length longitudinal, transversal and diagonal
• Number of measurements longitudinal, transver-
sal and
diagonal Alignment according to GGG-P-463c only.
• It is advisable to have the grid displayed by means
of the grid proposal

Page 79
