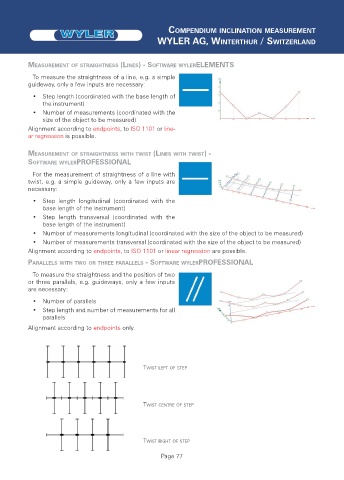

COMPENDIUM INCLINATION MEASUREMENT
WYLER AG, WINTERTHUR / SWITZERLAND

MEASUREMENT OF STRAIGHTNESS (LINES) - SOFTWARE WYLERELEMENTS
To measure the straightness of a line, e.g. a simple
guideway, only a few inputs are necessary:
• Step length (coordinated with the base length of
the instrument)
• Number of measurements (coordinated with the
size of the object to be measured)
Alignment according to endpoints, to ISO 1101 or line-
ar regression is possible.

MEASUREMENT OF STRAIGHTNESS WITH TWIST (LINES WITH TWIST) -
SOFTWARE WYLERPROFESSIONAL
For the measurement of straightness of a line with
twist, e.g. a simple guideway, only a few inputs are
necessary:
• Step length longitudinal (coordinated with the
base length of the instrument)
• Step length transversal (coordinated with the
base length of the instrument)
• Number of measurements longitudinal (coordinated with the size of the object to be measured)
• Number of measurements transversal (coordinated with the size of the object to be measured)
Alignment according to endpoints, to ISO 1101 or linear regression are possible.
PARALLELS WITH TWO OR THREE PARALLELS - SOFTWARE WYLERPROFESSIONAL
To measure the straightness and the position of two
or three parallels, e.g. guideways, only a few inputs
are necessary:
• Number of parallels
• Step length and number of measurements for all
parallels
Alignment according to endpoints only.

TWIST LEFT OF STEP

TWIST CENTRE OF STEP

TWIST RIGHT OF STEP
