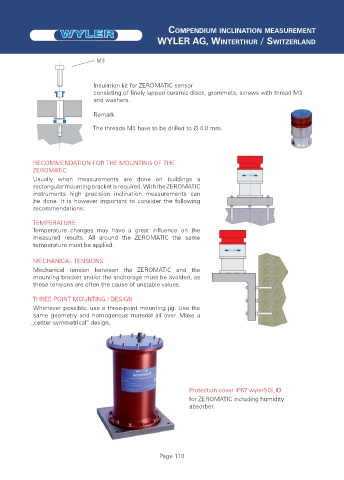

COMPENDIUM INCLINATION MEASUREMENT
WYLER AG, WINTERTHUR / SWITZERLAND

M3

Insulation kit for ZEROMATIC sensor
consisting of finely lapped ceramic discs, grommets, screws with thread M3
and washers.
Remark:
The threads M4 have to be drilled to Ø 4,0 mm.

RECOMMENDATION FOR THE MOUNTING OF THE
ZEROMATIC
Usually when measurements are done on buildings a
rectangular mounting bracket is required. With the ZEROMATIC
instruments high precision inclination measurements can
be done. It is however important to consider the following
recommendations:
TEMPERATURE
Temperature changes may have a great influence on the
measured results. All around the ZEROMATIC the same
temperature must be applied.
MECHANICAL TENSIONS
Mechanical tension between the ZEROMATIC and the
mounting bracket and/or the anchorage must be avoided, as
these tensions are often the cause of unstable values.
THREE-POINT MOUNTING / DESIGN
Whenever possible, use a three-point mounting jig. Use the
same geometry and homogenous material all over. Make a
„center symmetrical“ design.

Protection cover IP67 wylerSOLID
for ZEROMATIC including humidity
absorber.
