COMPENDIUM INCLINATION MEASUREMENT
WYLER AG, WINTERTHUR / SWITZERLAND

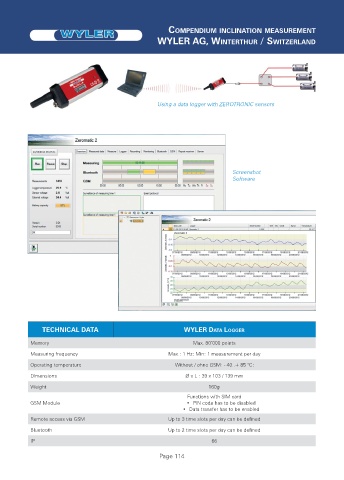

Using a data logger with ZEROTRONIC sensors
Screenshot
Software
TECHNICAL DATA WYLER DATA LOGGER
Memory Max. 80‘000 points
Measuring frequency Max.: 1 Hz; Min: 1 measurement per day
Operating temperature Without / ohne GSM: - 40..+ 85 °C;
Dimensions Ø x L : 39 x 103 / 139 mm
Weight 160g
Functions with SIM card
GSM Module • PIN code has to be disabled
• Data transfer has to be enabled
Remote access via GSM Up to 3 time slots per day can be defined
Bluetooth Up to 2 time slots per day can be defined
IP 66
