COMPENDIUM INCLINATION MEASUREMENT
WYLER AG, WINTERTHUR / SWITZERLAND

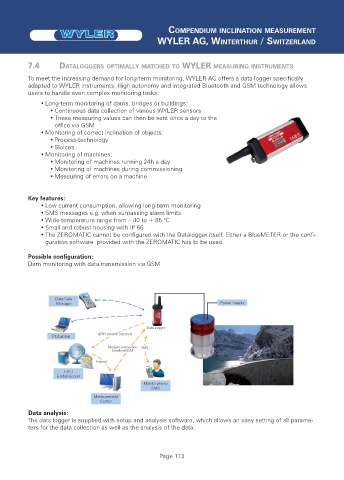

7.4 DATALOGGERS OPTIMALLY MATCHED TO WYLER MEASURING INSTRUMENTS

To meet the increasing demand for long-term monitoring, WYLER AG offers a data logger specifically
adapted to WYLER instruments. High autonomy and integrated Bluetooth and GSM technology allows
users to handle even complex monitoring tasks:
• Long-term monitoring of dams, bridges or buildings:
• Continuous data collection of various WYLER sensors
• These measuring values can then be sent once a day to the
office via GSM
• Monitoring of correct inclination of objects:
• Process-technology
• Sluices
• Monitoring of machines:
• Monitoring of machines running 24h a day
• Monitoring of machines during commissioning
• Measuring of errors on a machine

Key features:
• Low current consumption, allowing long-term monitoring
• SMS messages e.g. when surpassing alarm limits
• Wide temperature range from – 40 to + 85 °C
• Small and robust housing with IP 66
• The ZEROMATIC cannot be configured with the Datalogger itself. Either a BlueMETER or the confi-
guration software provided with the ZEROMATIC has to be used.
Possible configuration:
Dam monitoring with data transmission via GSM

Data-Safe
Manager Power Supply

Data Logger
PC/Laptop GPRS (mobile internet)
Modem connection SMS
(landline/GSM
Internet
FTP /
E-Mail-Server
Mobile phone
SMS
Measurement
Center
Data analysis:
The data logger is supplied with setup and analysis software, which allows an easy setting of all parame-
ters for the data collection as well as the analysis of the data.
