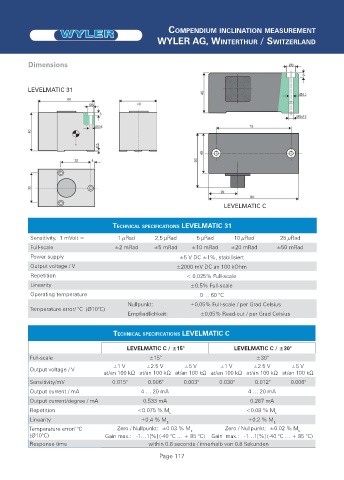

Page 117 - Lehrbuch Neigungsmessung deutsch 2018.indd

COMPENDIUM INCLINATION MEASUREMENT
WYLER AG, WINTERTHUR / SWITZERLAND

Dimensions

LEVELMATIC 31

LEVELMATIC C

TECHNICAL SPECIFICATIONS LEVELMATIC 31
Sensitivity, 1 mVolt = 1 μRad 2,5 μRad 5 μRad 10 μRad 25 μRad
Full-scale ±2 mRad ±5 mRad ±10 mRad ±20 mRad ±50 mRad
Power supply ±5 V DC ±1%, stabilisiert
Output voltage / V ±2000 mV DC an 100 kOhm
Repetition < 0,025% Full-scale
Linearity ±0,5% Full-scale
Operating temperature 0 ... 60 °C
Nullpunkt: ±0,05% Full-scale / per Grad Celsius
Temperature error/ °C (Ø10°C)
Empfindlichkeit: ±0,05% Read-out / per Grad Celsius
TECHNICAL SPECIFICATIONS LEVELMATIC C
LEVELMATIC C / ±15° LEVELMATIC C / ±30°
Full-scale ±15° ±30°
±1 V ±2.5 V ±5 V ±1 V ±2.5 V ±5 V
Output voltage / V
at/an 100 kΩ at/an 100 kΩ at/an 100 kΩ at/an 100 kΩ at/an 100 kΩ at/an 100 kΩ
Sensitivity/mV 0.015° 0.006° 0.003° 0.030° 0.012° 0.006°
Output current / mA 4 … 20 mA 4 … 20 mA
Output current/degree / mA 0.533 mA 0.267 mA
Repetition <0.075 % M <0.08 % M
E E
Linearity ±0.4 % M E ±0.2 % M E
Temperature error/ °C Zero / Nullpunkt: ±0.03 % M E Zero / Nullpunkt: ±0.02 % M E
(Ø10°C) Gain max.: -1…1[%] (-40 °C … + 85 °C) Gain max.: -1…1[%] (-40 °C … + 85 °C)
Response time within 0.8 seconds / innerhalb von 0.8 Sekunden
Page 117
