COMPENDIUM INCLINATION MEASUREMENT
WYLER AG, WINTERTHUR / SWITZERLAND

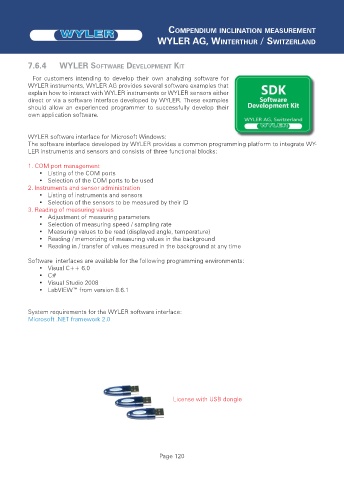

7.6.4 WYLER SOFTWARE DEVELOPMENT KIT
7.6.4

For customers intending to develop their own analyzing software for
WYLER instruments, WYLER AG provides several software examples that
explain how to interact with WYLER instruments or WYLER sensors either
direct or via a software interface developed by WYLER. These examples
should allow an experienced programmer to successfully develop their
own application software.

WYLER software interface for Microsoft Windows:
The software interface developed by WYLER provides a common programming platform to integrate WY-
LER instruments and sensors and consists of three functional blocks:

1. COM port management
• Listing of the COM ports
• Selection of the COM ports to be used
2. Instruments and sensor administration
• Listing of instruments and sensors
• Selection of the sensors to be measured by their ID
3. Reading of measuring values
• Adjustment of measuring parameters
• Selection of measuring speed / sampling rate
• Measuring values to be read (displayed angle, temperature)
• Reading / memorizing of measuring values in the background
• Reading in / transfer of values measured in the background at any time
Software interfaces are available for the following programming environments:
• Visual C++ 6.0
• C#
• Visual Studio 2008
• LabVIEW™ from version 8.6.1

System requirements for the WYLER software interface:
Microsoft .NET framework 2.0

License with USB dongle

Page 120
