COMPENDIUM INCLINATION MEASUREMENT
WYLER AG, WINTERTHUR / SWITZERLAND

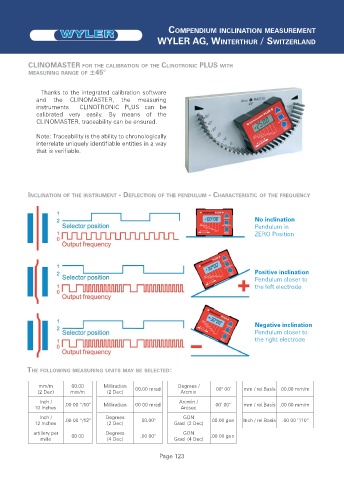

CLINOMASTER FOR THE CALIBRATION OF THE CLINOTRONIC PLUS WITH
MEASURING RANGE OF ±45°

Thanks to the integrated calibration software
and the CLINOMASTER, the measuring
instruments CLINOTRONIC PLUS can be
calibrated very easily. By means of the
CLINOMASTER, traceability can be ensured.
Note: Traceability is the ability to chronologically
interrelate uniquely identifiable entities in a way
that is verifiable.

INCLINATION OF THE INSTRUMENT - DEFLECTION OF THE PENDULUM - CHARACTERISTIC OF THE FREQUENCY

No inclination
Pendulum in
ZERO Position

Positive inclination
Pendulum closer to
the left electrode

Negative inclination
Pendulum closer to
the right electrode

THE FOLLOWING MEASURING UNITS MAY BE SELECTED:
mm/m 00.00 Milliradian 00.00 mrad Degrees / 00° 00‘ mm / rel.Basis 00.00 mm/m
(2 Dec) mm/m (2 Dec) Arcmin
Inch / .00 00 ‘‘/10“ Milliradian 00 00 mrad Arcmin / 00‘ 00‘‘ mm / rel.Basis .00 00 mm/m
10 Inches Arcsec
Inch / .00 00 ‘‘/12“ Degrees 00.00° GON 00.00 gon Inch / rel.Basis .00 00 ‘‘/10“
12 Inches (2 Dec) Grad (2 Dec)
artillery per Degrees GON
mille 00 00 (4 Dec) .00 00° Grad (4 Dec) .00 00 gon
