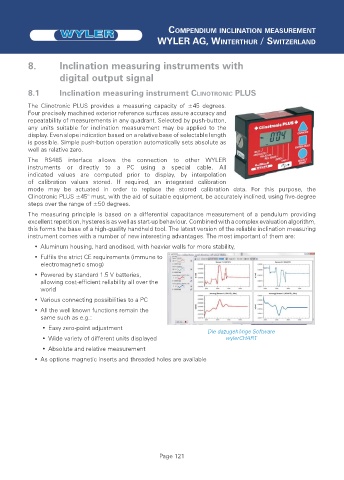

COMPENDIUM INCLINATION MEASUREMENT
WYLER AG, WINTERTHUR / SWITZERLAND

8. Inclination measuring instruments with

digital output signal
8.1 Inclination measuring instrument CLINOTRONIC PLUS

The Clinotronic PLUS provides a measuring capacity of ±45 degrees.
Four precisely machined exterior reference surfaces assure accuracy and
repeatability of measurements in any quadrant. Selected by push-button,
any units suitable for inclination measurement may be applied to the
display. Even slope indication based on a relative base of selectable length
is possible. Simple push-button operation automatically sets absolute as
well as relative zero.
The RS485 interface allows the connection to other WYLER
instruments or directly to a PC using a special cable. All
indicated values are computed prior to display, by interpolation
of calibration values stored. If required, an integrated calibration
mode may be actuated in order to replace the stored calibration data. For this purpose, the
Clinotronic PLUS ±45° must, with the aid of suitable equipment, be accurately inclined, using five-degree
steps over the range of ±50 degrees.
The measuring principle is based on a differential capacitance measurement of a pendulum providing
excellent repetition, hysteresis as well as start-up behaviour. Combined with a complex evaluation algorithm,
this forms the base of a high-quality handheld tool. The latest version of the reliable inclination measuring
instrument comes with a number of new interesting advantages. The most important of them are:
• Aluminum housing, hard anodised, with heavier walls for more stability,
• Fulfils the strict CE requirements (immune to
electromagnetic smog)
• Powered by standard 1.5 V batteries,
allowing cost-efficient reliability all over the
world
• Various connecting possibilities to a PC
• All the well known functions remain the
same such as e.g.:
• Easy zero-point adjustment
Die dazugehörige Software
• Wide variety of different units displayed wylerCHART
• Absolute and relative measurement
• As options magnetic inserts and threaded holes are available
