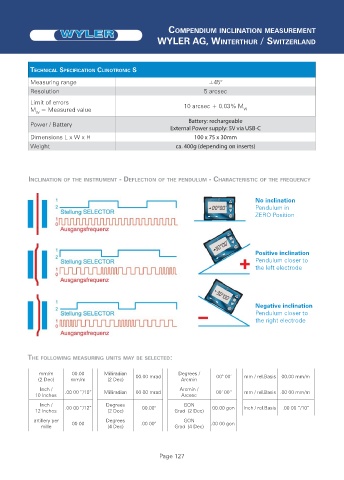

COMPENDIUM INCLINATION MEASUREMENT
WYLER AG, WINTERTHUR / SWITZERLAND
TECHNICAL SPECIFICATION CLINOTRONIC S
Measuring range ±45°
Resolution 5 arcsec
Limit of errors 10 arcsec + 0.03% M
M = Measured value W
W
Power / Battery Battery: rechargeable
External Power supply: 5V via USB-C
Dimensions L x W x H 100 x 75 x 30mm
Weight ca. 400g (depending on inserts)
INCLINATION OF THE INSTRUMENT - DEFLECTION OF THE PENDULUM - CHARACTERISTIC OF THE FREQUENCY
No inclination
Pendulum in
ZERO Position
Positive inclination
Pendulum closer to
the left electrode
Negative inclination
Pendulum closer to
the right electrode
THE FOLLOWING MEASURING UNITS MAY BE SELECTED:
mm/m 00.00 Milliradian 00.00 mrad Degrees / 00° 00‘ mm / rel.Basis 00.00 mm/m
(2 Dec) mm/m (2 Dec) Arcmin
Inch / .00 00 ‘‘/10“ Milliradian 00 00 mrad Arcmin / 00‘ 00‘‘ mm / rel.Basis .00 00 mm/m
10 Inches Arcsec
Inch / .00 00 ‘‘/12“ Degrees 00.00° GON 00.00 gon Inch / rel.Basis .00 00 ‘‘/10“
12 Inches (2 Dec) Grad (2 Dec)
artillery per 00 00 Degrees .00 00° GON .00 00 gon
mille (4 Dec) Grad (4 Dec)
