COMPENDIUM INCLINATION MEASUREMENT
WYLER AG, WINTERTHUR / SWITZERLAND

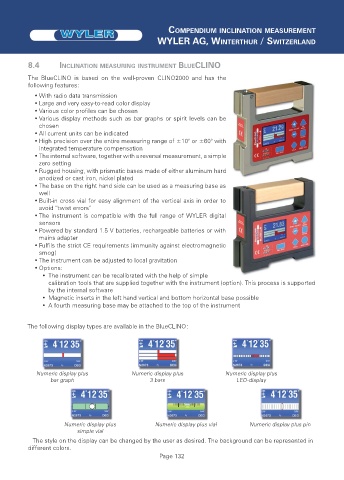

8.4 INCLINATION MEASURING INSTRUMENT BLUECLINO

The BlueCLINO is based on the well-proven CLINO2000 and has the
following features:
• With radio data transmission
• Large and very easy-to-read color display
• Various color profiles can be chosen
• Various display methods such as bar graphs or spirit levels can be
chosen
• All current units can be indicated
• High precision over the entire measuring range of ±10° or ±60° with
integrated temperature compensation
• The internal software, together with a reversal measurement, a simple
zero setting
• Rugged housing, with prismatic bases made of either aluminum hard
anodized or cast iron, nickel plated
• The base on the right hand side can be used as a measuring base as
well
• Built-in cross vial for easy alignment of the vertical axis in order to
avoid “twist errors”
• The instrument is compatible with the full range of WYLER digital
sensors
• Powered by standard 1.5 V batteries, rechargeable batteries or with
mains adapter
• Fulfils the strict CE requirements (immunity against electromagnetic
smog)
• The instrument can be adjusted to local gravitation
• Options:
• The instrument can be recalibrated with the help of simple
calibration tools that are supplied together with the instrument (option). This process is supported
by the internal software
• Magnetic inserts in the left hand vertical and bottom horizontal base possible
• A fourth measuring base may be attached to the top of the instrument

The following display types are available in the BlueCLINO:

Numeric display plus Numeric display plus Numeric display plus
bar graph 3 bars LED-display

Numeric display plus Numeric display plus vial Numeric display plus pin
simple vial
The style on the display can be changed by the user as desired. The background can be represented in
different colors.
