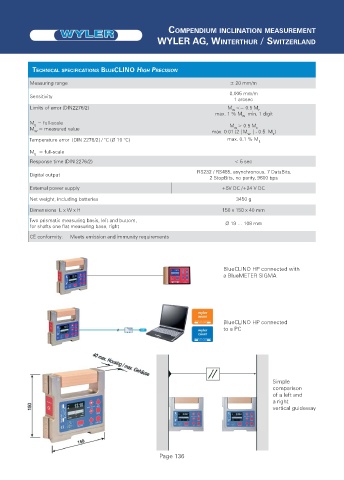

Page 136 - Lehrbuch Neigungsmessung deutsch 2018.indd
P. 136
COMPENDIUM INCLINATION MEASUREMENT
WYLER AG, WINTERTHUR / SWITZERLAND
TECHNICAL SPECIFICATIONS BLUECLINO HIGH PRECISION
Measuring range ± 20 mm/m
0.005 mm/m
Sensitivity
1 arcsec
Limits of error (DIN2276/2) M <= 0.5 M
E
W
max. 1 % M min. 1 digit
W
M = full-scale M > 0.5 M
E
M = measured value max. 0.01 (2 |M | - 0.5 M )
E
W
W
W E
Temperature error (DIN 2276/2) / °C (Ø 10 °C) max. 0.1 % M E
M = full-scale
E
Response time (DIN 2276/2) < 5 sec
RS232 / RS485, asynchronous, 7 DataBits,
Digital output
2 StopBits, no parity, 9600 bps
External power supply +5V DC /+24 V DC
Net weight, including batteries 3450 g
Dimensions L x W x H 150 x 150 x 40 mm
Two prismatic measuring basis, left and buttom,
for shafts one flat measuring base, right Ø 19 … 108 mm
CE conformity: Meets emission and immunity requirements
BlueCLINO HP connected with
a BlueMETER SIGMA
BlueCLINO HP connected
to a PC
Simple
comparison
of a left and
a right
vertical guideway
