COMPENDIUM INCLINATION MEASUREMENT
WYLER AG, WINTERTHUR / SWITZERLAND

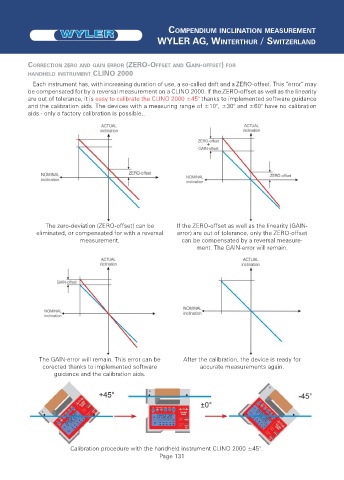

CORRECTION ZERO AND GAIN ERROR (ZERO-OFFSET AND GAIN-OFFSET) FOR
HANDHELD INSTRUMENT CLINO 2000
Each instrument has, with increasing duration of use, a so-called drift and a ZERO-offset. This “error“ may
be compensated for by a reversal measurement on a CLINO 2000. If the ZERO-offset as well as the linearity
are out of tolerance, it is easy to calibrate the CLINO 2000 ±45° thanks to implemented software guidance
and the calibration aids. The devices with a measuring range of ±10°, ±30° and ±60° have no calibration
aids - only a factory calibration is possible..

The zero-deviation (ZERO-offset) can be If the ZERO-offset as well as the linearity (GAIN-
eliminated, or compensated for with a reversal error) are out of tolerance, only the ZERO-offset
measurement. can be compensated by a reversal measure-
ment. The GAIN-error will remain.

The GAIN-error will remain. This error can be After the calibration, the device is ready for
corected thanks to implemented software accurate measurements again.
guidance and the calibration aids.

Calibration procedure with the handheld instrument CLINO 2000 ±45°.
Page 131
