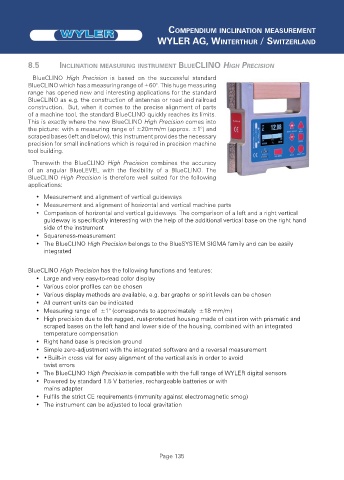

COMPENDIUM INCLINATION MEASUREMENT
WYLER AG, WINTERTHUR / SWITZERLAND

8.5 INCLINATION MEASURING INSTRUMENT BLUECLINO HIGH PRECISION

BlueCLINO High Precision is based on the successful standard
BlueCLINO which has a measuring range of ±60°. This huge measuring
range has opened new and interesting applications for the standard
BlueCLINO as e.g. the construction of antennas or road and railroad
construction. But, when it comes to the precise alignment of parts
of a machine tool, the standard BlueCLINO quickly reaches its limits.
This is exactly where the new BlueCLINO High Precision comes into
the picture: with a measuring range of ±20mm/m (approx. ±1°) and
scraped bases (left and below), this instrument provides the necessary
precision for small inclinations which is required in precision machine
tool building.
Therewith the BlueCLINO High Precision combines the accuracy
of an angular BlueLEVEL with the flexibility of a BlueCLINO. The
BlueCLINO High Precision is therefore well suited for the following
applications:
• Measurement and alignment of vertical guideways
• Measurement and alignment of horizontal and vertical machine parts
• Comparison of horizontal and vertical guideways. The comparison of a left and a right vertical
guideway is specifically interesting with the help of the additional vertical base on the right hand
side of the instrument
• Squareness-measurement
• The BlueCLINO High Precision belongs to the BlueSYSTEM SIGMA family and can be easily
integrated
BlueCLINO High Precision has the following functions and features:
• Large and very easy-to-read color display
• Various color profiles can be chosen
• Various display methods are available, e.g. bar graphs or spirit levels can be chosen
• All current units can be indicated
• Measuring range of ±1° (corresponds to approximately ±18 mm/m)
• High precision due to the rugged, rust-protected housing made of cast iron with prismatic and
scraped bases on the left hand and lower side of the housing, combined with an integrated
temperature compensation
• Right hand base is precision ground
• Simple zero-adjustment with the integrated software and a reversal measurement
• • Built-in cross vial for easy alignment of the vertical axis in order to avoid
twist errors
• The BlueCLINO High Precision is compatible with the full range of WYLER digital sensors
• Powered by standard 1.5 V batteries, rechargeable batteries or with
mains adapter
• Fulfils the strict CE requirements (immunity against electromagnetic smog)
• The instrument can be adjusted to local gravitation
