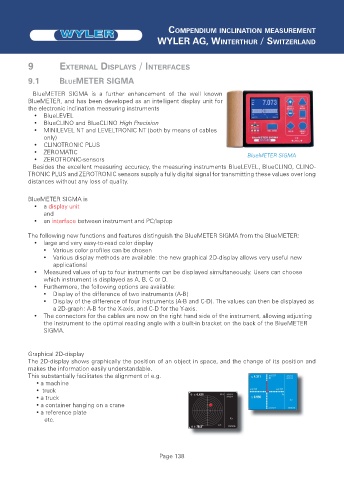

COMPENDIUM INCLINATION MEASUREMENT
WYLER AG, WINTERTHUR / SWITZERLAND

9 EXTERNAL DISPLAYS / INTERFACES

9.1 BLUEMETER SIGMA
BlueMETER SIGMA is a further enhancement of the well known
BlueMETER, and has been developed as an intelligent display unit for
the electronic inclination measuring instruments
• BlueLEVEL
• BlueCLINO and BlueCLINO High Precision
• MINILEVEL NT and LEVELTRONIC NT (both by means of cables
only)
• CLINOTRONIC PLUS
• ZEROMATIC BlueMETER SIGMA
• ZEROTRONIC-sensors
Besides the excellent measuring accuracy, the measuring instruments BlueLEVEL, BlueCLINO, CLINO-
TRONIC PLUS and ZEROTRONIC sensors supply a fully digital signal for transmitting these values over long
distances without any loss of quality.

BlueMETER SIGMA is
• a display unit
and
• an interface between instrument and PC/laptop
The following new functions and features distinguish the BlueMETER SIGMA from the BlueMETER:
• large and very easy-to-read color display
• Various color profiles can be chosen
• Various display methods are available: the new graphical 2D-display allows very useful new
applications!
• Measured values of up to four instruments can be displayed simultaneously. Users can choose
which instrument is displayed as A, B, C or D.
• Furthermore, the following options are available:
• Display of the difference of two instruments (A-B)
• Display of the difference of four instruments (A-B and C-D). The values can then be displayed as
a 2D-graph: A-B for the X-axis, and C-D for the Y-axis.
• The connectors for the cables are now on the right hand side of the instrument, allowing adjusting
the instrument to the optimal reading angle with a built-in bracket on the back of the BlueMETER
SIGMA.

Graphical 2D-display
The 2D-display shows graphically the position of an object in space, and the change of its position and
makes the information easily understandable.
This substantially facilitates the alignment of e.g.
• a machine
• truck
• a truck
• a container hanging on a crane
• a reference plate
etc.
