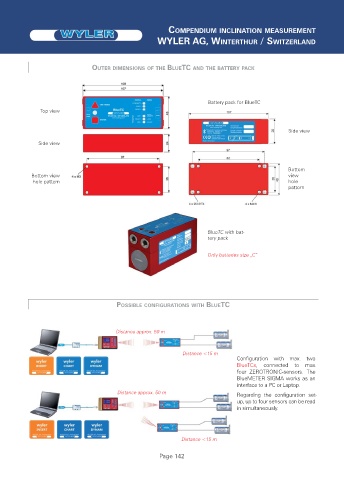

COMPENDIUM INCLINATION MEASUREMENT
WYLER AG, WINTERTHUR / SWITZERLAND
OUTER DIMENSIONS OF THE BLUETC AND THE BATTERY PACK
Battery pack for BlueTC
Top view
Side view
Side view
Bottom
Bottom view view
hole pattern hole
pattern
BlueTC with bat-
tery pack
Only batteries size „C“
POSSIBLE CONFIGURATIONS WITH BLUETC
Distance approx. 50 m
Distance <15 m
Configuration with max. two
BlueTCs, connected to max.
four ZEROTRONIC-sensors. The
BlueMETER SIGMA works as an
interface to a PC or Laptop.
Distance approx. 50 m
Regarding the configuration set-
up, up to four sensors can be read
in simultaneously.
Distance <15 m
