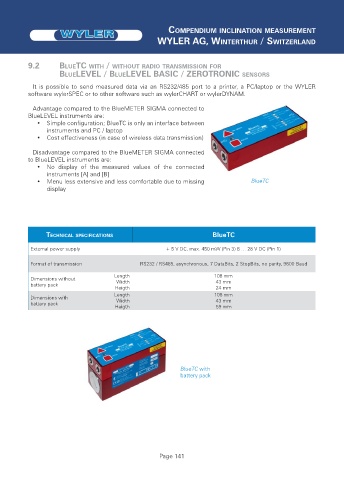

Page 141 - Lehrbuch Neigungsmessung deutsch 2018.indd

COMPENDIUM INCLINATION MEASUREMENT
WYLER AG, WINTERTHUR / SWITZERLAND

9.2 BLUETC WITH / WITHOUT RADIO TRANSMISSION FOR

BLUELEVEL / BLUELEVEL BASIC / ZEROTRONIC SENSORS
It is possible to send measured data via an RS232/485 port to a printer, a PC/laptop or the WYLER
software wylerSPEC or to other software such as wylerCHART or wylerDYNAM.
Advantage compared to the BlueMETER SIGMA connected to
BlueLEVEL instruments are:
• Simple configuration; BlueTC is only an interface between
instruments and PC / laptop
• Cost effectiveness (in case of wireless data transmission)

Disadvantage compared to the BlueMETER SIGMA connected
to BlueLEVEL instruments are:
• No display of the measured values of the connected
instruments [A] and [B]
• Menu less extensive and less comfortable due to missing BlueTC
display

TECHNICAL SPECIFICATIONS BlueTC
External power supply + 5 V DC, max. 450 mW (Pin 3) 8 … 28 V DC (Pin 1)

Format of transmission RS232 / RS485, asynchronous, 7 DataBits, 2 StopBits, no parity, 9600 Baud
Dimensions without Length 108 mm
Width
43 mm
battery pack Heigth 24 mm
Dimensions with Length 108 mm
battery pack Width 43 mm
Heigth 59 mm

BlueTC with
battery pack
