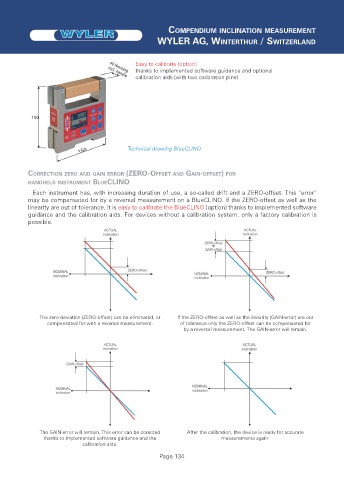

COMPENDIUM INCLINATION MEASUREMENT
WYLER AG, WINTERTHUR / SWITZERLAND

Easy to calibrate (option)
thanks to implemented software guidance and optional
calibration aids (with two calibration pins)

Technical drawing BlueCLINO

CORRECTION ZERO AND GAIN ERROR (ZERO-OFFSET AND GAIN-OFFSET) FOR
HANDHELD INSTRUMENT BLUECLINO
Each instrument has, with increasing duration of use, a so-called drift and a ZERO-offset. This “error“
may be compensated for by a reversal measurement on a BlueCLINO. If the ZERO-offset as well as the
linearity are out of tolerance, it is easy to calibrate the BlueCLINO (option) thanks to implemented software
guidance and the calibration aids. For devices without a calibration system, only a factory calibration is
possible.

The zero-deviation (ZERO-offset) can be eliminated, or If the ZERO-offset as well as the linearity (GAIN-error) are out
compensated for with a reversal measurement. of tolerance only the ZERO-offset can be compensated for
by a reversal measurement. The GAIN-error will remain.

The GAIN-error will remain. This error can be corected After the calibration, the device is ready for accurate
thanks to implemented software guidance and the measurements again.
calibration aids.
