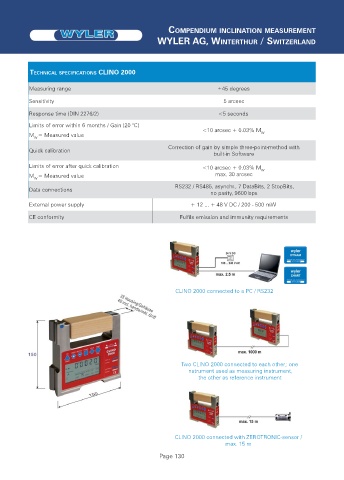

Page 130 - Lehrbuch Neigungsmessung deutsch 2018.indd

COMPENDIUM INCLINATION MEASUREMENT
WYLER AG, WINTERTHUR / SWITZERLAND

TECHNICAL SPECIFICATIONS CLINO 2000

Measuring range ±45 degrees
Sensitivity 5 arcsec
Response time (DIN 2276/2) <5 seconds
Limits of error within 6 months / Gain (20 °C)
<10 arcsec + 0.03% M
M = Measured value W
W
Correction of gain by simple three-point-method with
Quick calibration
built-in Software
Limits of error after quick calibration <10 arcsec + 0.03% M W
M = Measured value max. 30 arcsec
W
RS232 / RS485, asynchr., 7 DataBits, 2 StopBits,
Data connections
no parity, 9600 bps
External power supply + 12 ... + 48 V DC / 200 - 500 mW
CE conformity Fulfils emission and immunity requirements

CLINO 2000 connected to a PC / RS232

Two CLINO 2000 connected to each other; one
nstrument used as measuring instrument,
the other as reference instrument

CLINO 2000 connected with ZEROTRONIC-sensor /
max. 15 m
