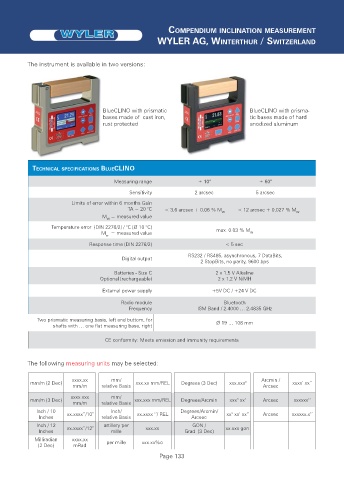

COMPENDIUM INCLINATION MEASUREMENT
WYLER AG, WINTERTHUR / SWITZERLAND

The instrument is available in two versions:

BlueCLINO with prismatic BlueCLINO with prisma-
bases made of cast iron, tic bases made of hard
rust protected anodized aluminum

TECHNICAL SPECIFICATIONS BLUECLINO
Measuring range ± 10° ± 60°
Sensitivity 2 arcsec 5 arcsec
Limits of error within 6 months Gain
TA = 20 °C < 3.6 arcsec + 0.06 % M < 12 arcsec + 0.027 % M
W W
M = measured value
W
Temperature error (DIN 2276/2) / °C (Ø 10 °C) max. 0.03 % M
M = measured value W
w
Response time (DIN 2276/2) < 5 sec
RS232 / RS485, asynchronous, 7 DataBits,
Digital output 2 StopBits, no parity, 9600 bps
Batteries - Size C 2 x 1.5 V Alkaline
Optional (rechargeable) 2 x 1.2 V NiMH
External power supply +5V DC / +24 V DC
Radio module Bluetooth
Frequency ISM Band / 2.4000 … 2.4835 GHz
Two prismatic measuring basis, left and buttom, for
shafts with … one flat measuring base, right Ø 19 … 108 mm
CE conformity: Meets emission and immunity requirements

The following measuring units may be selected:
xxxx.xx mm/ Arcmin /
mm/m (2 Dec) xxx.xx mm/REL Degrees (3 Dec) xxx.xxx° xxxx‘ xx‘‘
mm/m relative Basis Arcsec
xxxx.xxx mm/
mm/m (3 Dec) xxx.xxx mm/REL Degrees/Arcmin xxx° xx‘ Arcsec xxxxxx‘‘
mm/m relative Basis
Inch / 10 xx.xxxx‘‘/10“ Inch/ xx.xxxx ‘‘/ REL Degrees/Arcmin/ xx° xx‘ xx‘‘ Arcsec xxxxxx.x‘‘
Inches relative Basis Arcsec
Inch / 12 xx.xxxx‘‘/12“ artillery per xxx.xx GON / xx.xxx gon
Inches mille Grad (3 Dec)
Milliradian xxxx.xx per mille xxx.xx%o
(2 Dec) mRad
