COMPENDIUM INCLINATION MEASUREMENT
WYLER AG, WINTERTHUR / SWITZERLAND

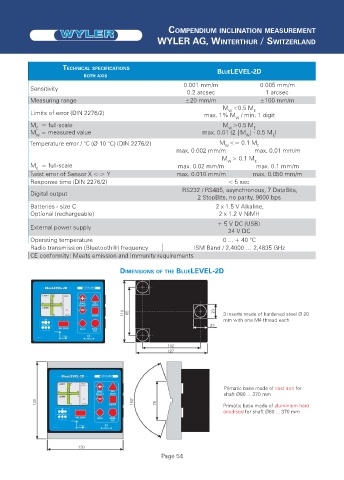

TECHNICAL SPECIFICATIONS BLUELEVEL-2D
BOTH AXIS
0.001 mm/m 0.005 mm/m
Sensitivity
0.2 arcsec 1 arcsec
Measuring range ±20 mm/m ±100 mm/m
M <0.5 M
E
W
Limits of error (DIN 2276/2) max. 1% M / min. 1 digit
W
M = full-scale M >0.5 M E
E
W
M = measured value max. 0.01 (2 |M | - 0.5 M )
W W E
Temperature error / °C (Ø 10 °C) (DIN 2276/2) M <= 0.1 M E
W
max. 0.002 mm/m max. 0.01 mm/m
M > 0.1 M E
W
M = full-scale max. 0.02 mm/m max. 0.1 mm/m
E
Twist error of Sensor X <-> Y max. 0.010 mm/m max. 0.050 mm/m
Response time (DIN 2276/2) < 5 sec
RS232 / RS485, asynchronous, 7 DataBits,
Digital output
2 StopBits, no parity, 9600 bps
Batteries - size C 2 x 1.5 V Alkaline,
Optional (rechargeable) 2 x 1.2 V NiMH
+ 5 V DC (USB)
External power supply
24 V DC
Operating temperature 0 ... + 40 °C
Radio transmission (Bluetooth®) frequency ISM Band / 2,4000 … 2,4835 GHz
CE conformity: Meets emission and immunity requirements
DIMENSIONS OF THE BLUELEVEL-2D
110 85 23 3 inserts made of hardened steel Ø 20
mm with one M4 thread each
23

102
127

Primatic base made of cast iron for
shaft Ø80 ... 370 mm
130 160° 78 Primatic base made of aluminium hard
anodised for shaft Ø80 ... 370 mm

130
