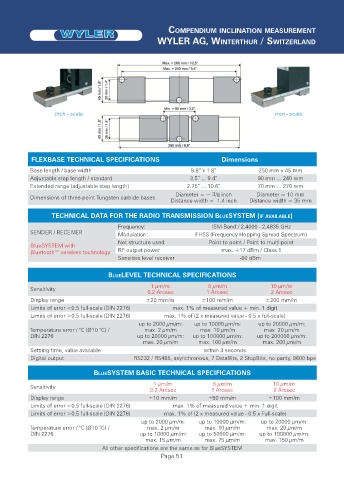

Page 51 - Lehrbuch Neigungsmessung deutsch 2018.indd

COMPENDIUM INCLINATION MEASUREMENT
WYLER AG, WINTERTHUR / SWITZERLAND

Inch - scale mm - scale

FLEXBASE TECHNICAL SPECIFICATIONS Dimensions
Base length / base width 9.8” x 1.8” 250 mm x 45 mm
Adjustable step length / standard 3.5” ... 9.4” 90 mm ... 240 mm
Extended range (adjustable step length) 2.75” ... 10.6” 70 mm ... 270 mm
Diameter = ~ 3/8 inch Diameter = 10 mm
Dimensions of three-point Tungsten carbide bases Distance width = 1.4 inch Distance width = 35 mm
TECHNICAL DATA FOR THE RADIO TRANSMISSION BLUESYSTEM (IF AVAILABLE)
Frequency: ISM-Band / 2,4000 - 2,4835 GHz
SENDER / RECEIVER Modulation: FHSS (Frequency Hopping Spread Spectrum)
Net structure used Point to point / Point to multi-point
BlueSYSTEM with
Bluetooth™ wireless technology RF output power max. +17 dBm / Class 1
Sensitive level receiver -80 dBm
BLUELEVEL TECHNICAL SPECIFICATIONS
1 μm/m 5 μm/m 10 μm/m
Sensitivity
0.2 Arcsec 1 Arcsec 2 Arcsec
Display range ±20 mm/m ±100 mm/m ±200 mm/m
Limits of error <0.5 full-scale (DIN 2276) max. 1% of measured value + min. 1 digit
Limits of error >0.5 full-scale (DIN 2276) max. 1% of (2 x measured value - 0.5 x full-scale)
up to 2000 μm/m: up to 10000 μm/m: up to 20000 μm/m:
Temperature error / °C (Ø10 °C) / max. 2 μm/m max. 10 μm/m max. 20 μm/m
DIN 2276 up to 20000 μm/m: up to 100000 μm/m: up to 200000 μm/m:
max. 20 μm/m max. 100 μm/m max. 200 μm/m
Settling time, value available within 3 seconds
Digital output RS232 / RS485, asynchronous, 7 DataBits, 2 StopBits, no parity, 9600 bps
BLUESYSTEM BASIC TECHNICAL SPECIFICATIONS
1 μm/m 5 μm/m 10 μm/m
Sensitivity
0.2 Arcsec 1 Arcsec 2 Arcsec
Display range ±10 mm/m ±50 mm/m ±100 mm/m
Limits of error <0.5 full-scale (DIN 2276) max. 1% of measured value + min. 1 digit
Limits of error >0.5 full-scale (DIN 2276) max. 1% of (2 x measured value - 0.5 x Full-scale)
up to 2000 μm/m: up to 10000 μm/m: up to 20000 μm/m:
Temperature error / °C (Ø10 °C) / max. 2 μm/m max. 10 μm/m max. 20 μm/m
DIN 2276 up to 10000 μm/m: up to 50000 μm/m: up to 100000 μm/m:
max. 15 μm/m max. 75 μm/m max. 150 μm/m
All other specifications are the same as for BlueSYSTEM
