COMPENDIUM INCLINATION MEASUREMENT
WYLER AG, WINTERTHUR / SWITZERLAND

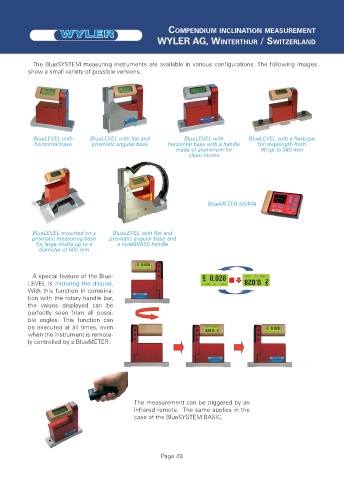

The BlueSYSTEM measuring instruments are available in various configurations. The following images
show a small variety of possible versions.
BlueLEVEL with BlueLEVEL with flat and BlueLEVEL with BlueLEVEL with a flexbase
horizontal base prismatic angular base horizontal base with a handle for steplength from
made of aluminium for 90 up to 240 mm
clean rooms
BlueMETER SIGMA
BlueLEVEL mounted on a BlueLEVEL with flat and
prismatic measuring base prismatic angular base and
for large shafts up to a a nivelSWISS handle
diameter of 600 mm
A special feature of the Blue-
LEVEL is mirroring the display.
With this function in combina-
tion with the rotary handle bar,
the values displayed can be
perfectly seen from all possi-
ble angles. This function can
be executed at all times, even
when the instrument is remote-
ly controlled by a BlueMETER.
The measurement can be triggered by an
infrared remote. The same applies in the
case of the BlueSYSTEM BASIC.
