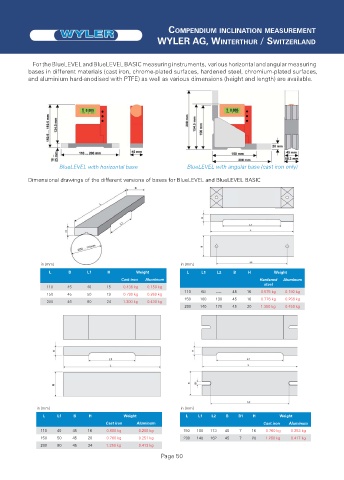

Page 50 - Lehrbuch Neigungsmessung deutsch 2018.indd

COMPENDIUM INCLINATION MEASUREMENT
WYLER AG, WINTERTHUR / SWITZERLAND

For the BlueLEVEL and BlueLEVEL BASIC measuring instruments, various horizontal and angular measuring
bases in different materials (cast iron, chrome-plated surfaces, hardened steel, chromium-plated surfaces,
and aluminium hard-anodised with PTFE) as well as various dimensions (height and length) are available.

BlueLEVEL with horizontal base BlueLEVEL with angular base (cast iron only)
Dimensional drawings of the different versions of bases for BlueLEVEL and BlueLEVEL BASIC

in [mm] in [mm]
L B L1 H Weight L L1 L2 B H Weight
Cast iron Aluminum Hardened Aluminum
steel
110 45 40 15 0.436 kg 0.150 kg
110 68 ----- 45 16 0.575 kg 0.192 kg
150 45 50 19 0.790 kg 0.260 kg
150 100 130 45 16 0.776 kg 0.258 kg
200 45 80 24 1.300 kg 0.430 kg
200 140 170 45 20 1.350 kg 0.450 kg

in [mm] in [mm]
L L1 B H Weight L L1 L2 B B1 H Weight
Cast iron Aluminum Cast iron Aluminum
110 40 45 16 0.600 kg 0.200 kg 150 100 113 45 7 16 0.760 kg 0.253 kg
150 50 45 20 0.760 kg 0.251 kg 200 140 162 45 7 20 1.250 kg 0.417 kg
200 80 45 24 1.250 kg 0.413 kg
