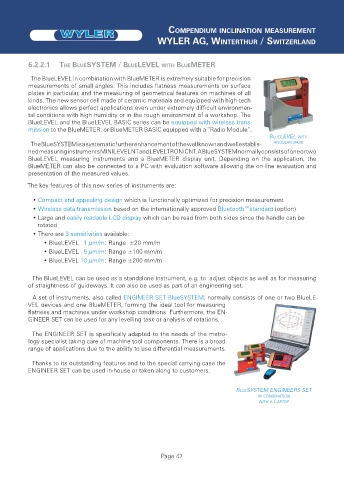

COMPENDIUM INCLINATION MEASUREMENT
WYLER AG, WINTERTHUR / SWITZERLAND

6.2.2.1 THE BLUESYSTEM / BLUELEVEL WITH BLUEMETER
The BlueLEVEL in combination with BlueMETER is extremely suitable for precision
measurements of small angles. This includes flatness measurements on surface
plates in particular, and the measuring of geometrical features on machines of all
kinds. The new sensor cell made of ceramic materials and equipped with high-tech
electronics allows perfect applications even under extremely difficult environmen-
tal conditions with high humidity or in the rough environment of a workshop. The
BlueLEVEL and the BlueLEVEL BASIC series can be equipped with wireless trans-
mission to the BlueMETER, or BlueMETER BASIC equipped with a “Radio Module”.
BLUELEVEL WITH
The BlueSYSTEM is a systematic further enhancement of the well known and well establis- ANGULAR BASE
hed measuring instruments MINILEVEL NT and LEVELTRONIC NT. A BlueSYSTEM normally consists of one or two
BlueLEVEL measuring instruments and a BlueMETER display unit. Depending on the application, the
BlueMETER can also be connected to a PC with evaluation software allowing the on-line evaluation and
presentation of the measured values.
The key features of this new series of instruments are:
• Compact and appealing design which is functionally optimized for precision measurement
• Wireless data transmission based on the internationally approved Bluetooth™standard (option)
• Large and easily readable LCD display which can be read from both sides since the handle can be
rotated
• There are 3 sensitivities available:
• BlueLEVEL 1 μm/m: Range ±20 mm/m
• BlueLEVEL 5 μm/m: Range ±100 mm/m
• BlueLEVEL 10 μm/m: Range ±200 mm/m

The BlueLEVEL can be used as a standalone instrument, e.g. to adjust objects as well as for measuring
of straightness of guideways. It can also be used as part of an engineering set.
A set of instruments, also called ENGINEER SET BlueSYSTEM, normally consists of one or two BlueLE-
VEL devices and one BlueMETER, forming the ideal tool for measuring
flatness and machines under workshop conditions. Furthermore, the EN-
GINEER SET can be used for any levelling task or analysis of rotations.
The ENGINEER SET is specifically adapted to the needs of the metro-
logy specialist taking care of machine tool components. There is a broad
range of applications due to the ability to use differential measurements.

Thanks to its outstanding features and to the special carrying case the
ENGINEER SET can be used in-house or taken along to customers.

BLUESYSTEM ENGINEERS SET
IN COMBINATION
WITH A LAPTOP
