COMPENDIUM INCLINATION MEASUREMENT
WYLER AG, WINTERTHUR / SWITZERLAND

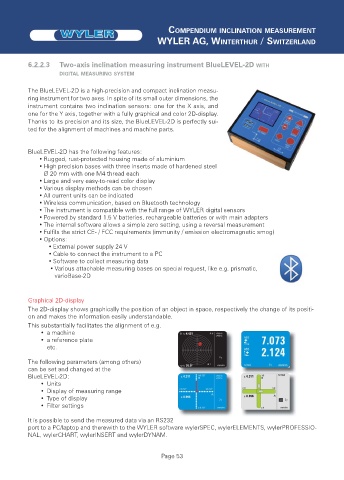

6.2.2.3 Two-axis inclination measuring instrument BlueLEVEL-2D WITH
DIGITAL MEASURING SYSTEM

The BlueLEVEL-2D is a high-precision and compact inclination measu-
ring instrument for two axes. In spite of its small outer dimensions, the
instrument contains two inclination sensors: one for the X axis, and
one for the Y axis, together with a fully graphical and color 2D-display.
Thanks to its precision and its size, the BlueLEVEL-2D is perfectly sui-
ted for the alignment of machines and machine parts.

BlueLEVEL-2D has the following features:
• Rugged, rust-protected housing made of aluminium
• High precision bases with three inserts made of hardened steel
Ø 20 mm with one M4 thread each
• Large and very easy-to-read color display
• Various display methods can be chosen
• All current units can be indicated
• Wireless communication, based on Bluetooth technology
• The instrument is compatible with the full range of WYLER digital sensors
• Powered by standard 1.5 V batteries, rechargeable batteries or with main adapters
• The internal software allows a simple zero setting, using a reversal measurement
• Fulfils the strict CE- / FCC requirements (immunity / emission electromagnetic smog)
• Options:
• External power supply 24 V
• Cable to connect the instrument to a PC
• Software to collect measuring data
• Various attachable measuring bases on special request, like e.g. prismatic,
varioBase-2D

Graphical 2D-display
The 2D-display shows graphically the position of an object in space, respectively the change of its positi-
on and makes the information easily understandable.
This substantially facilitates the alignment of e.g.
• a machine
• a reference plate
etc.
The following parameters (among others)
can be set and changed at the
BlueLEVEL-2D:
• Units
• Display of measuring range
• Type of display
• Filter settings
It is possible to send the measured data via an RS232
port to a PC/laptop and therewith to the WYLER software wylerSPEC, wylerELEMENTS, wylerPROFESSIO-
NAL, wylerCHART, wylerINSERT and wylerDYNAM.
