wylerLEVEL Frame ±0.001mm/m

Das wylerLEVEL Frame ist ein sehr präzises Neigungsmessgerät aus der BlueSYSTEM-Familie mit drahtloser Datenübertragung mit einem Messbereich von ±20 mm/m.

Produkte-Linie wylerLEVEL Frame




  160mm
Guss vernickelt		   200mm
Guss vernickelt

Der stabile Rahmen, zusammen mit den präzis geschabten Auflageflächen machen das wylerLEVEL Frame zu einem sehr interessanten Produkt innerhalb der BlueSYSTEM Familie. Dank seiner leicht ablesbaren und farbigen Anzeige kann es als Einzelgerät zum Ausrichten von Werkzeugmaschinen eingesetzt werden. Oder, in Kombination mit der Software wylerSPEC kann es, wie jedes andere BlueLEVEL, zur Vermessung von Geradheit, Ebenheit, Parallelität und Rechtwinkligkeit oder von Maschinen-Geometrien eingesetzt werden.



Das wylerLEVEL Frame eignet sich somit für folgende Anwendungen:

  • Vermessen und Einstellen von vertikalen Führungsbahnen
  • Vermessen und Einstellen von horizontalen oder vertikalen Maschinenteilen
  • Vergleich von parallelen vertikalen Führungsbahnen. Dabei ist im Speziellen der direkte Vergleich einer „linken“ und einer „rechten“ Seite interessant. Dies ist dank der präzisionsgeschliffenen Auflage an der rechten Gehäuse-Seite möglich
  • Rechtwinkligkeitsmessungen
  • Über Kabel oder über die optionale drahtlose Verbindung mittels Bluetooth® kann das wylerLEVEL Frame in jedes BlueSYSTEM integriert werden

Das wylerLEVEL Frame zeichnet sich durch folgende Eigenschaften aus:

  • Grosse und sehr gut lesbare, farbige Digitalanzeige
  • Funkübertragung, basierend auf der bewährten Bluetooth-Technologie
  • Verschiedene Farb-Profile können ausgewählt werden
  • Es stehen verschiedene Anzeige-Methoden zur Verfügung; unter anderem Bar-Graphiken oder Richtwaagen

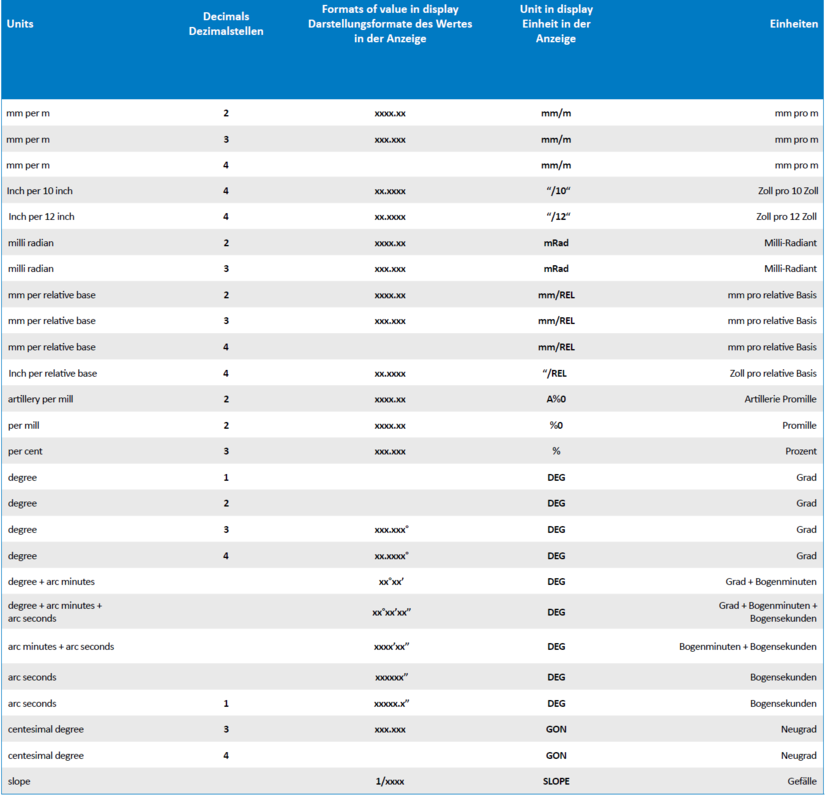

  • Alle gängigen Masseinheiten können angezeigt werden
  • Messbereich von ±20mm/m
  • Grösste Präzision dank integrierter Temperatur-Kompensation
  • Einfache Nullpunkteinstellung mittels integrierter Software und Umschlagsmessung

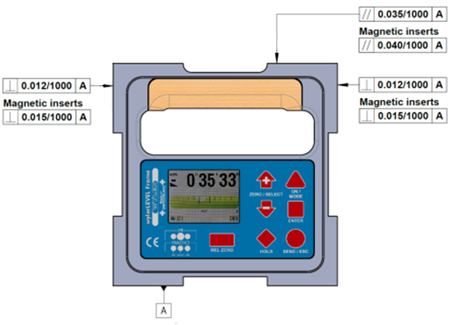

  • Robustes, rostgeschütztes Gehäuse aus Grauguss vernickelt mit prismatischen und geschabten
    Basen links und unten
  • Auflage rechts präzisionsgeschliffen
  • Eingebaute Libelle zum erleichterten Ausrichten der vertikalen Nebenachse zur Vermeidung von „Twistfehlern“
  • Das wylerLEVEL Frame ist kompatibel mit der gesamten Reihe digitaler Instrumente und
    Sensoren der WYLER AG
  • Betrieb mit handelsüblichen 1.5 V Batterien, Akkus, oder mit Stecker-Netzgerät
  • Erfüllt die strengen CE Normen (Immunität gegenüber elektromagnetischen Einflüssen)
  • Das Instrument kann an die lokale Erdbeschleunigung angepasst werden

Optionen:

  • Magneteinsätze an der linken und unteren Messbasis möglich
